TLS回调函数实现反调试

TLS-线程局部存储

先于我们OEP执行

#include
#include
#include
#include
#include
#include
#include
#include
#pragma comment(linker,"/INCLUDE:__tls_used")
// 告诉链接器我要用到TLSDWORD isDebug = 0;void NTAPI TLS_CALLBACK1(PVOID DllHandle, DWORD Reason, PVOID Reserved) {if (Reason == DLL_PROCESS_ATTACH){::MessageBoxA(0,"TLS函数执行1",0,0);//不接受内核调试信息/*NtSetInformationThread(GetCurrentThread(),ThreadHideFromDebugger,0,0);NtSetInformationProcess(GetCurrentProcess(),ProcessDebugPort,(PVOID)&isDebug,sizeof(DWORD),NULL);*/}}void NTAPI TLS_CALLBACK2(PVOID DllHandle, DWORD Reason, PVOID Reserved) {if (Reason == DLL_PROCESS_ATTACH){::MessageBoxA(0, "TLS函数执行2", 0, 0);}}int main()
{::MessageBoxA(0,"Main函数启动了",0,0);
}
//新建一段数据放入TLS这个目录里面
#pragma data_seg(".CRT$XLX")
PIMAGE_TLS_CALLBACK pTLS_CALLBACKs[] = { TLS_CALLBACK1,  TLS_CALLBACK2, NULL };
#pragma data_seg()

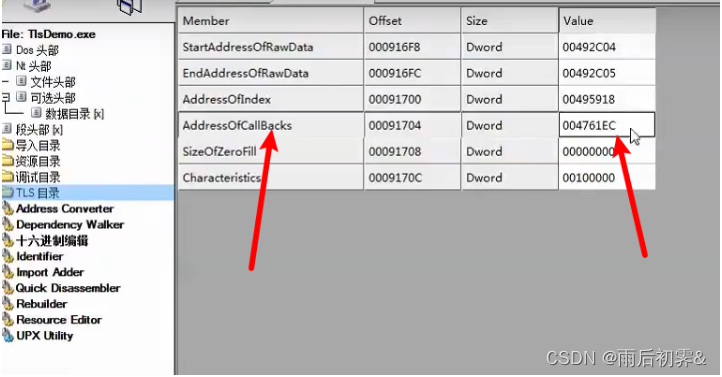

描述了TLS的结构体

对应

可以理解为函数指针的数组

实例

#include
#include
#include
#include
#pragma comment(linker,"/INCLUDE:__tls_used")
// 告诉链接器我要用到TLSDWORD dwDebugPort;
typedef NTSTATUS(__stdcall* pNtQueryInformationProcess)(IN HANDLE           ProcessHandle,IN PROCESSINFOCLASS ProcessInformationClass,OUT PVOID           ProcessInformation,IN ULONG            ProcessInformationLength,OUT PULONG          ReturnLength);void NTAPI TLS_CALLBACK1(PVOID DllHandle, DWORD Reason, PVOID Reserved) {if (Reason == DLL_PROCESS_ATTACH){::MessageBoxA(0,"TLS函数执行1",0,0);//不接受内核调试信息HMODULE hModule = LoadLibrary(TEXT("Ntdll.dll"));pNtQueryInformationProcess ntQueryInformationProcess = (pNtQueryInformationProcess)GetProcAddress(hModule, "NtQueryInformationProcess");ntQueryInformationProcess(GetCurrentProcess(), ProcessDebugPort, &dwDebugPort, sizeof(dwDebugPort), NULL);//dwDebugPort 为0表示没用被调试，反之则是}}//void NTAPI TLS_CALLBACK2(PVOID DllHandle, DWORD Reason, PVOID Reserved) {
//
//	if (Reason == DLL_PROCESS_ATTACH)
//	{
//		::MessageBoxA(0, "TLS函数执行2", 0, 0);
//
//	}
//
//}int main()
{     char str[] = "wust_is_good!";for (int i = 0; i < 14; ++i) {str[i] ^= dwDebugPort;}::MessageBoxA(NULL,str,"提示", MB_OK);
}
//新建一段数据放入TLS这个目录里面
#pragma data_seg(".CRT$XLX")
PIMAGE_TLS_CALLBACK pTLS_CALLBACKs[] = { TLS_CALLBACK1,  /*TLS_CALLBACK2,*/ NULL };
#pragma data_seg()

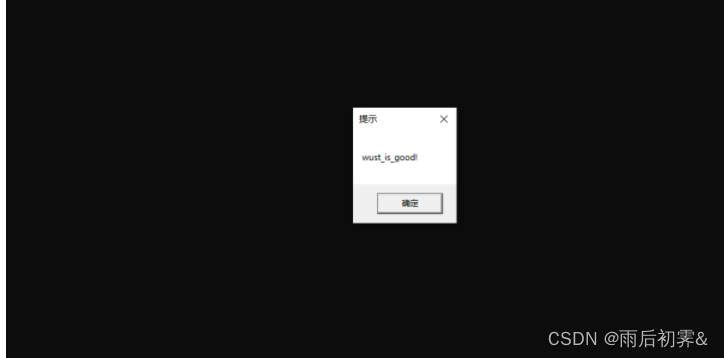

如果直接运行

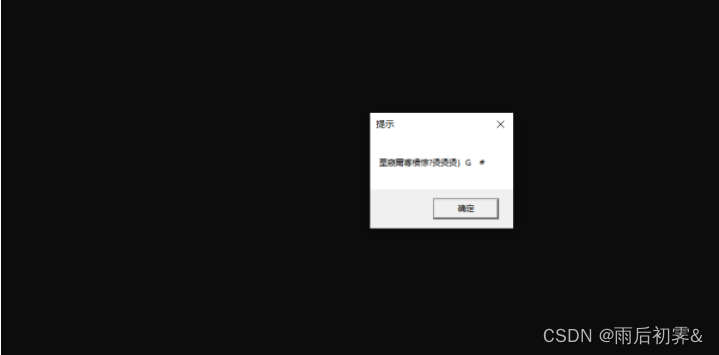

本地调试运行

一堆乱码

由于dwDebugPort是全局变量， 发现不是调试，置为0，0异或任何数都是该数本身

题目 Dest0g3 520迎新赛 tttea

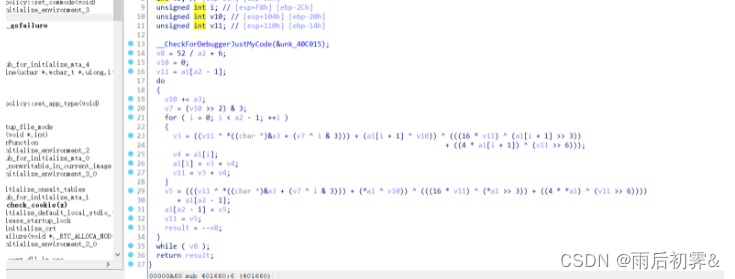

注意到是xxtea的特征值

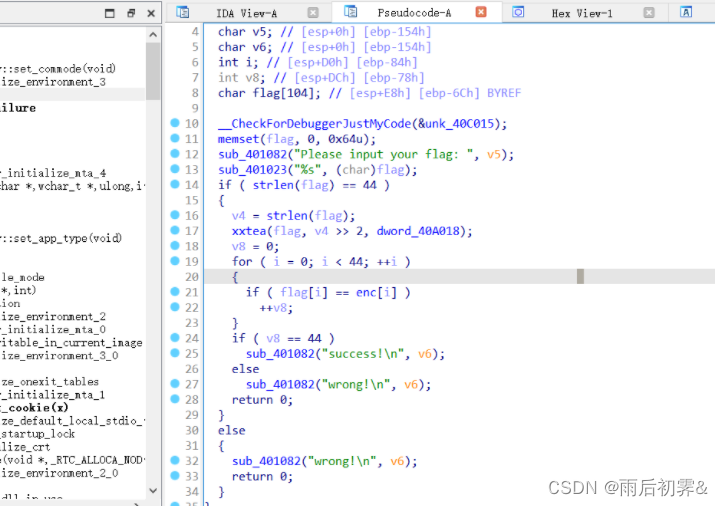

加密方式也是xxtea，实现部分把输入的44位flag ，组成11位int 类型的数据进行xxtea加密，最后与密文对比

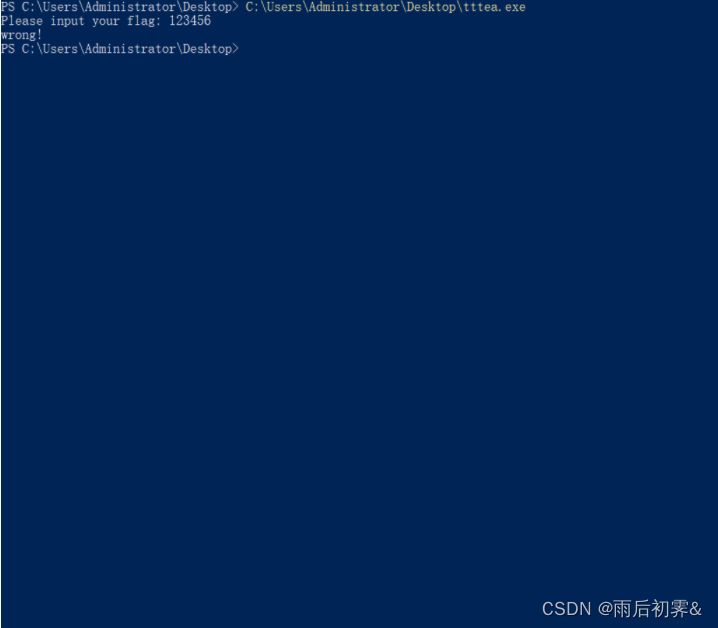

原本是直接写的东西，直接魔改xxtea直接弄，发现跑出来是乱码，直接动态调试

构造flag

flag{12345678912345678912345678912345678911}

注意到字符串，

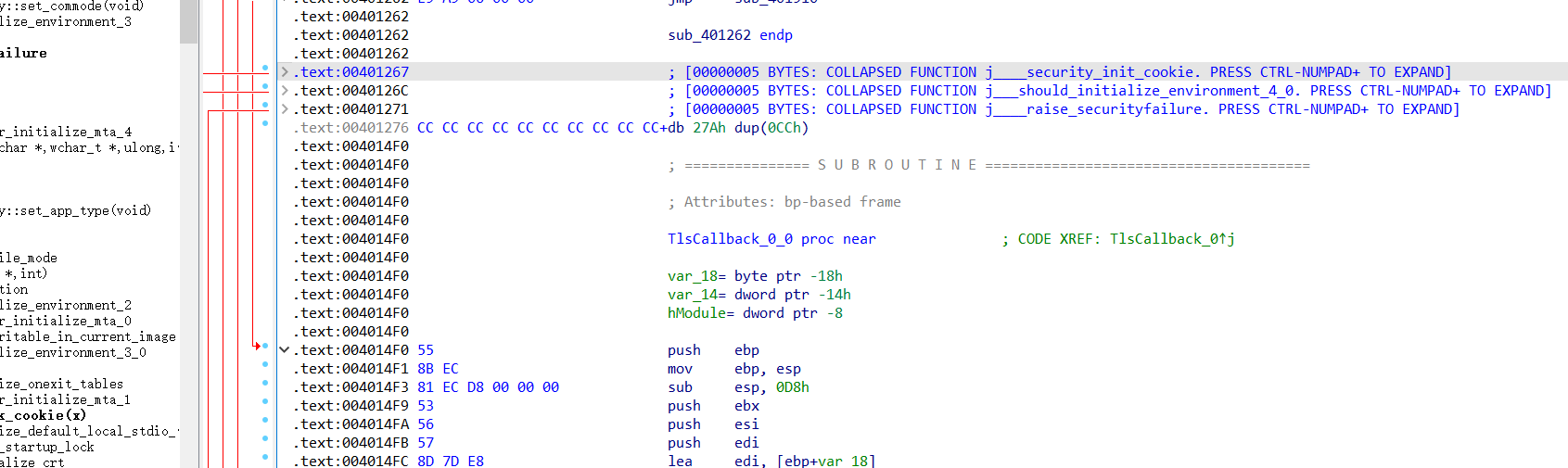

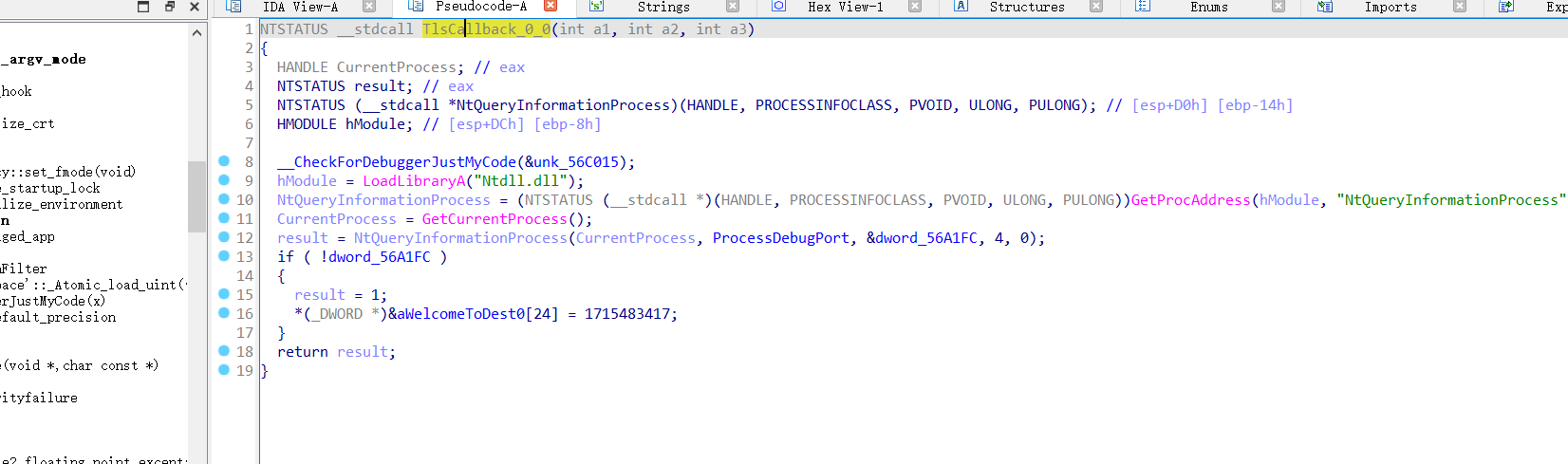

发现TLS和反调试函数

该字符串地址后24正好是key的位置

由于TLS一般在程序难以发现

最好使用查看PE文件的软件看各个段

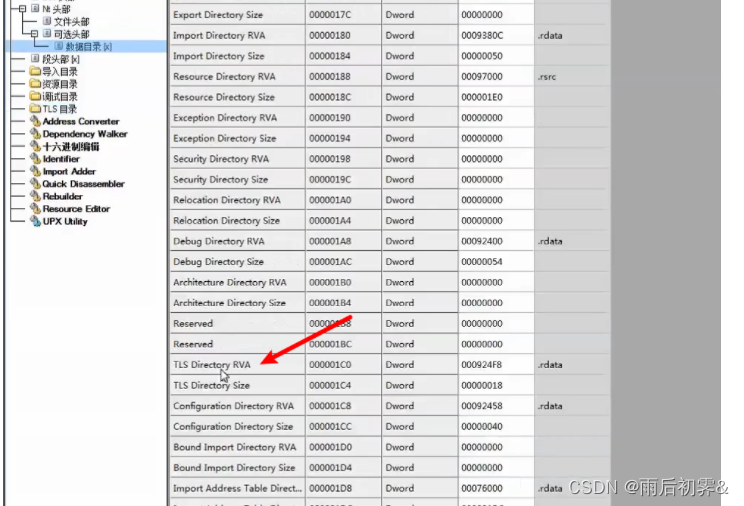

PE结构里->数据目录表（常见的导出表、导入表等）->TLS表

所以，加入TLS_CALLBACK，在TLS表里会找到TLS回调函数，这是找到TLS回调的一个方法

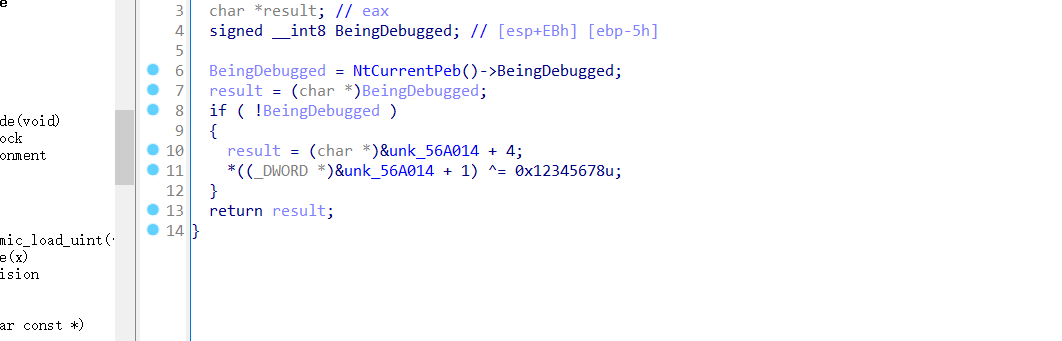

2个反调试

这个是异或

所以真正的delta为0x66403319 ^ 0x12345678,即0x74746561

EXP

#include
#include
#include #define MX (((z>>6^y<<2) + (y>>3^z<<4)) ^ ((sum^y) + (key[(p&3)^e] ^ z))) void xxtea_decode(uint32_t* v, int n, DWORD delta)
{char* key = (char*)δuint32_t y, z, sum;unsigned p, rounds, e;rounds = 6 + 52 / n;sum = rounds * delta;y = v[0];do{e = (sum >> 2) & 3;for (p = n - 1; p > 0; p--){z = v[p - 1];y = v[p] -= MX;}z = v[n - 1];y = v[0] -= MX;sum -= delta;} while (--rounds);
}int main()
{DWORD delta = 0x74746561;char enc[] = { 3, 35, 34, 47, 54, 136, 253, 67, 33, 232, 91, 101, 49, 30, 59, 166, 75, 184, 220, 136, 128, 25, 132, 111, 151, 114, 33, 38, 173, 100, 238, 187, 136, 4, 77, 6, 47, 38, 229, 107, 129, 75, 245, 115 };xxtea_decode((uint32_t*)enc, 11, delta);printf("%s", enc);return 0;
}
//Dest0g3{73dd38c2-9d45-4f7a-9bd0-90a1e9907c1}
